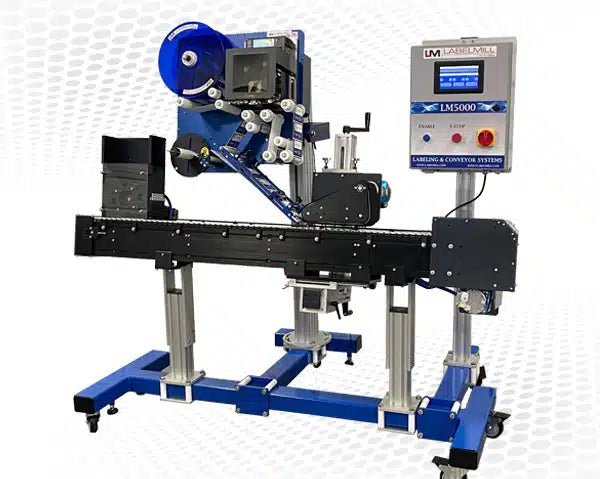

LM5000RB Apply-Only Rollerbed Tube Labeling Conveyor System

Automate pre-roll tube and round container labeling with the LM5000RB Rollerbed Conveyor System — configured for apply-only operation.

Contact us for pricing, installation, and service.

Built for speed and consistency, the LM5000RB Rollerbed System uses a powered hopper, nylon conveyor, and LM4012 Synchronous Feed Applicator to automatically apply labels to tubes and round containers. The system’s wrap belt assembly ensures precise application, while the PLC touchscreen makes operation simple. Designed for cannabis pre-roll tubes, food, and other cylindrical packaging lines.

What’s Included:

• Rollerbed (Nylon) Conveyor – 4" x 72" conveyor for stable product handling
• Powered Product Hopper – Quick-change drum for continuous loading
• H-Base with Conveyor Mount Posts & Brackets
• Adjustable T-Leg Uprights – 5' height with twist-adjust plates
• Horizontal Adjustment Kit – Flexible product positioning
• LM4012 Synchronous Feed Applicator – 4.5" system width, apply-only configuration

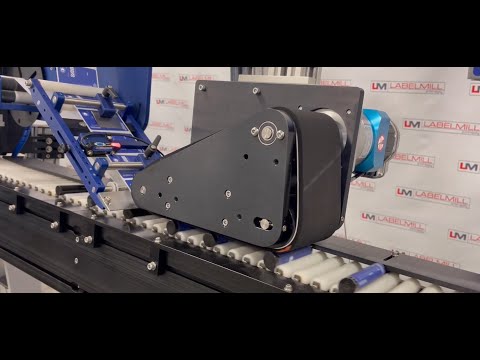

• Wrap Belt System Assembly – Crank-adjusted for precision
• Guides, Brackets & Cross Blocks
• Fiber Product Sensor – With bracket and cable

System Specifications:

• Throughput: 60–100 products per minute (dependent on size)
• Product Range: 1.0" x 0.5" OD min to 6.0" x 1.0" OD max
• Label Sizes: 0.5" x 0.5" min to 6" x 3" max
• Placement Accuracy: ±1/16"
• Label Roll Capacity: 12" O.D. (16” optional), 3" core
• Power: 120VAC, 60Hz, 15A
• Dimensions: 72" L x 55" W x 70" H
• Weight: ~500 lbs

Optional on-site installation and operator training available. Jet City Label also offers compatible labels, service plans, and custom integration support.

Financing Available

Lease the LM5000RB Apply-Only System with supplies and service bundled under a single monthly payment. Flexible financing helps scale production efficiently.

Click here to learn more about financing your LM5000RB Apply-Only Conveyor System.
