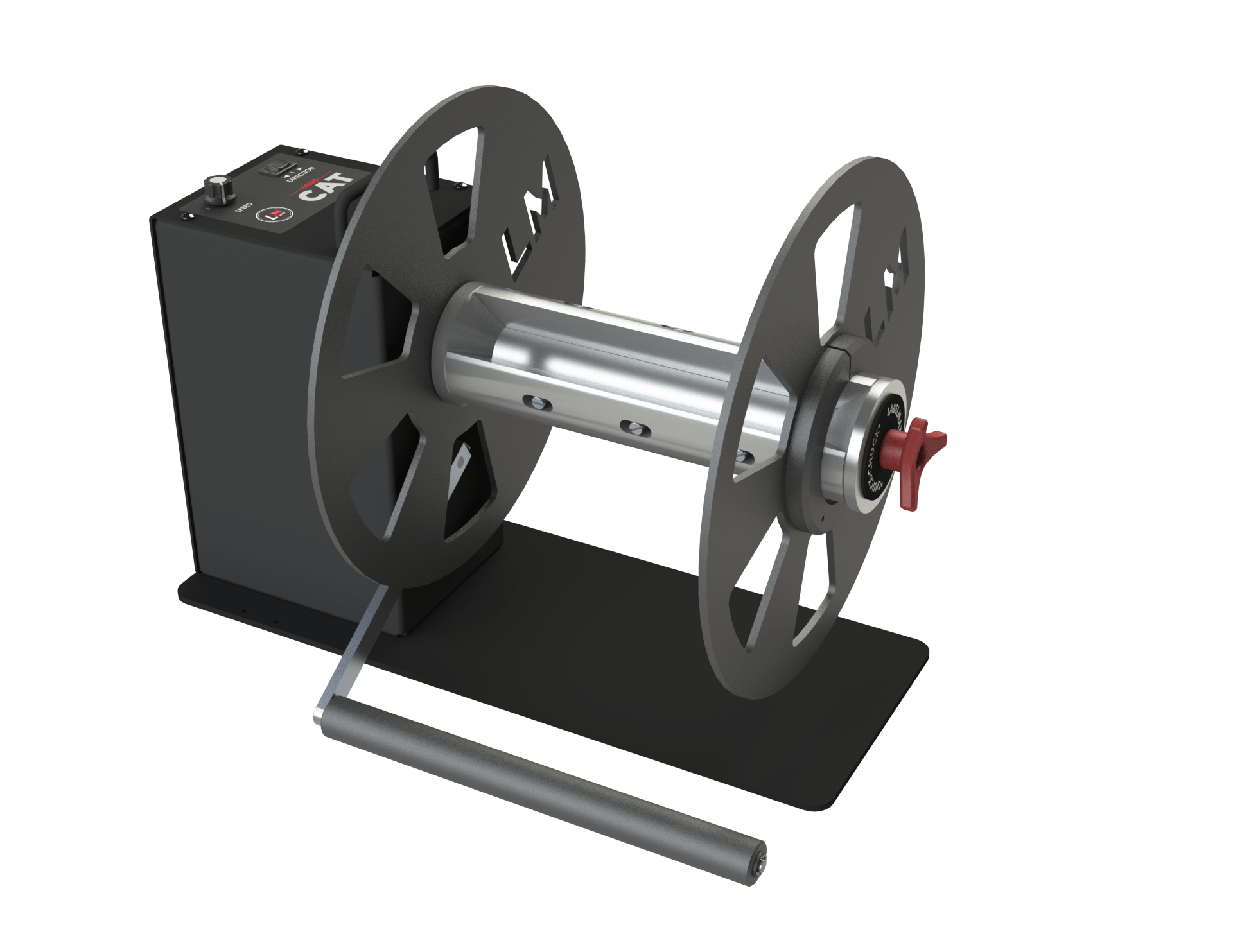

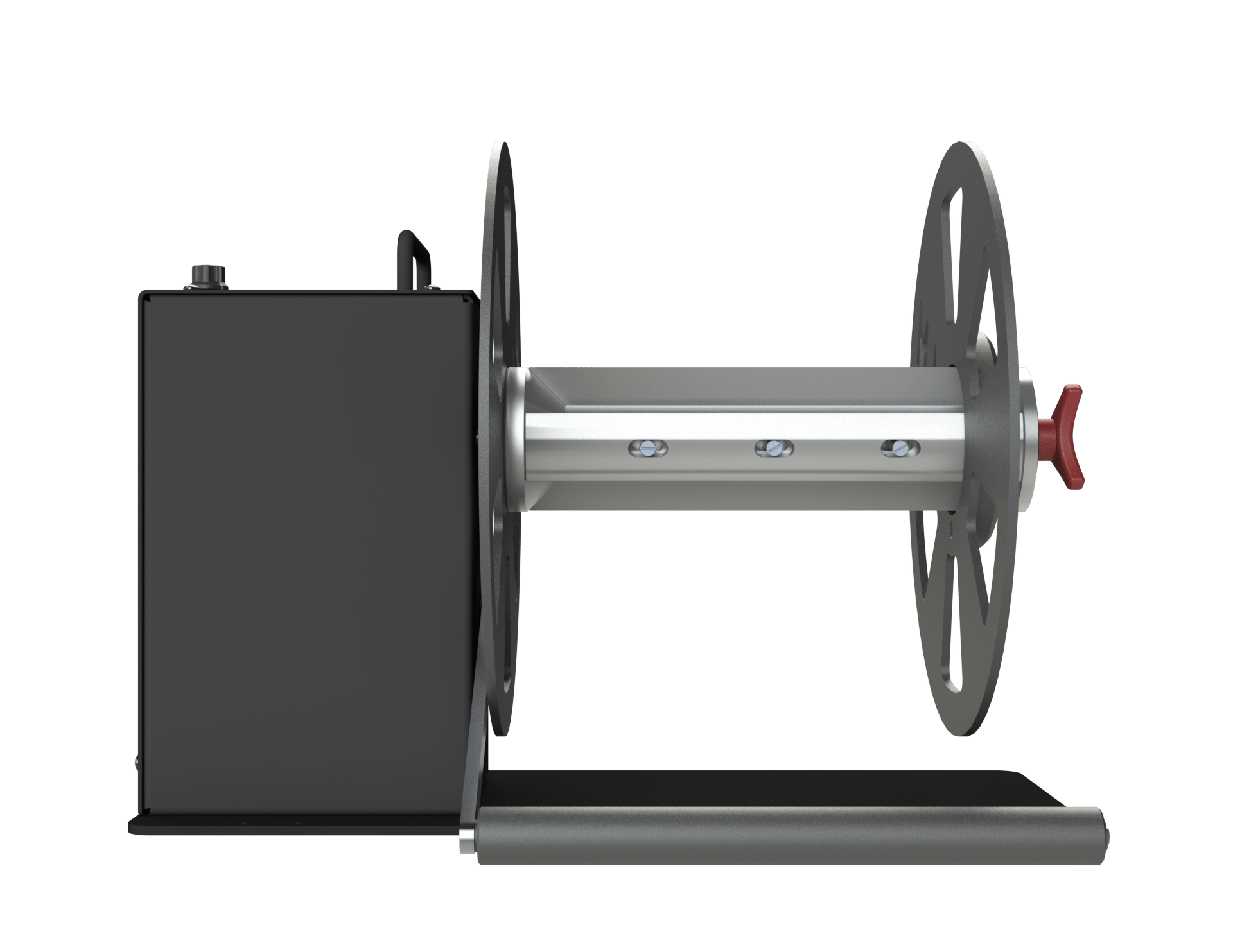

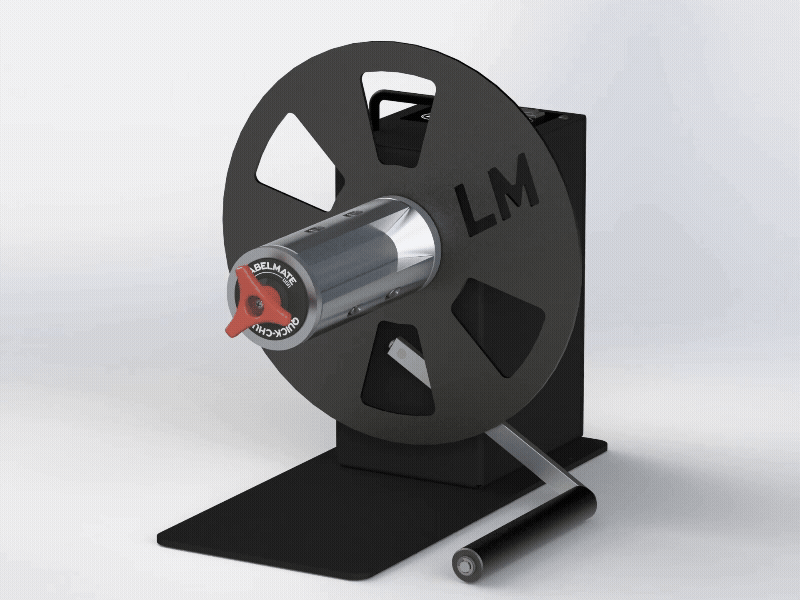

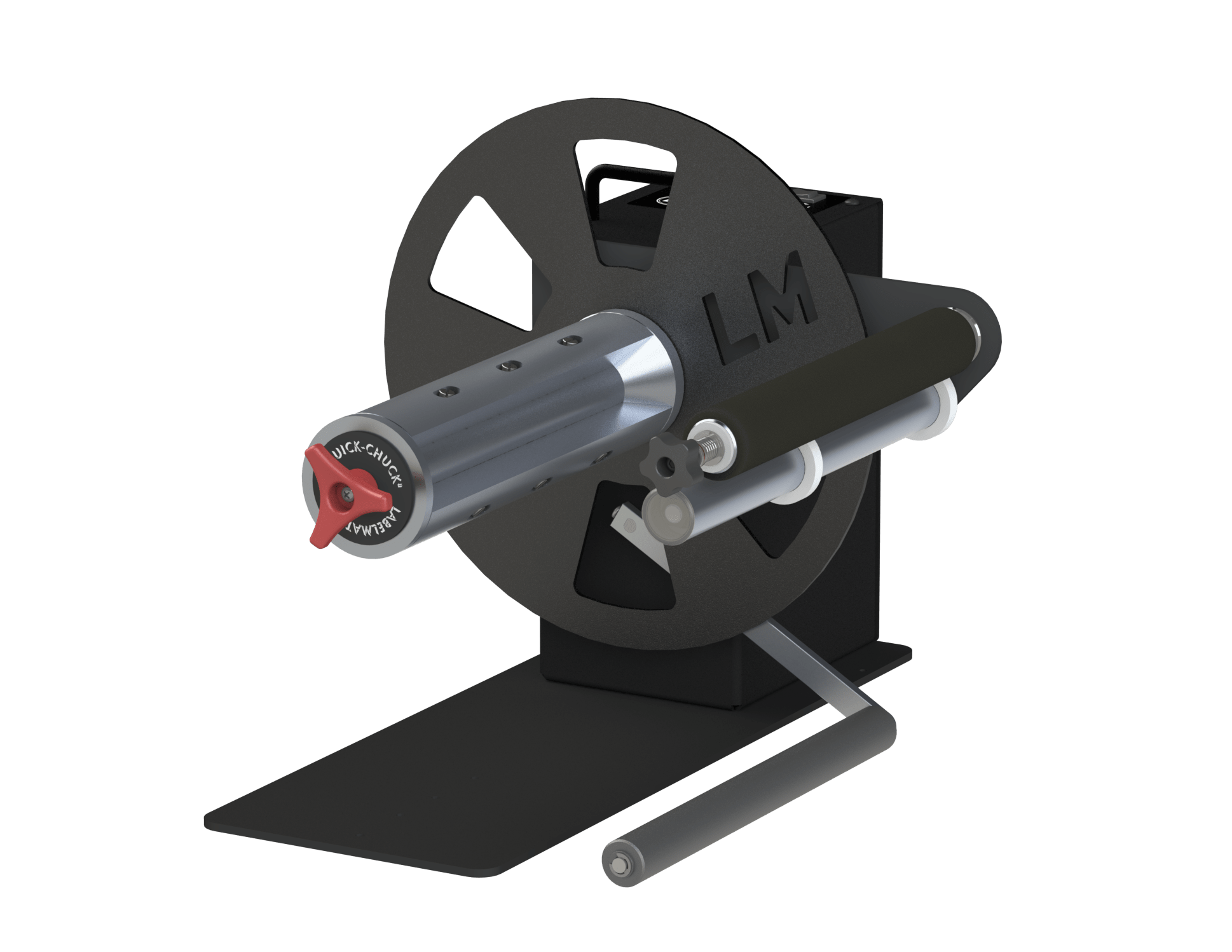

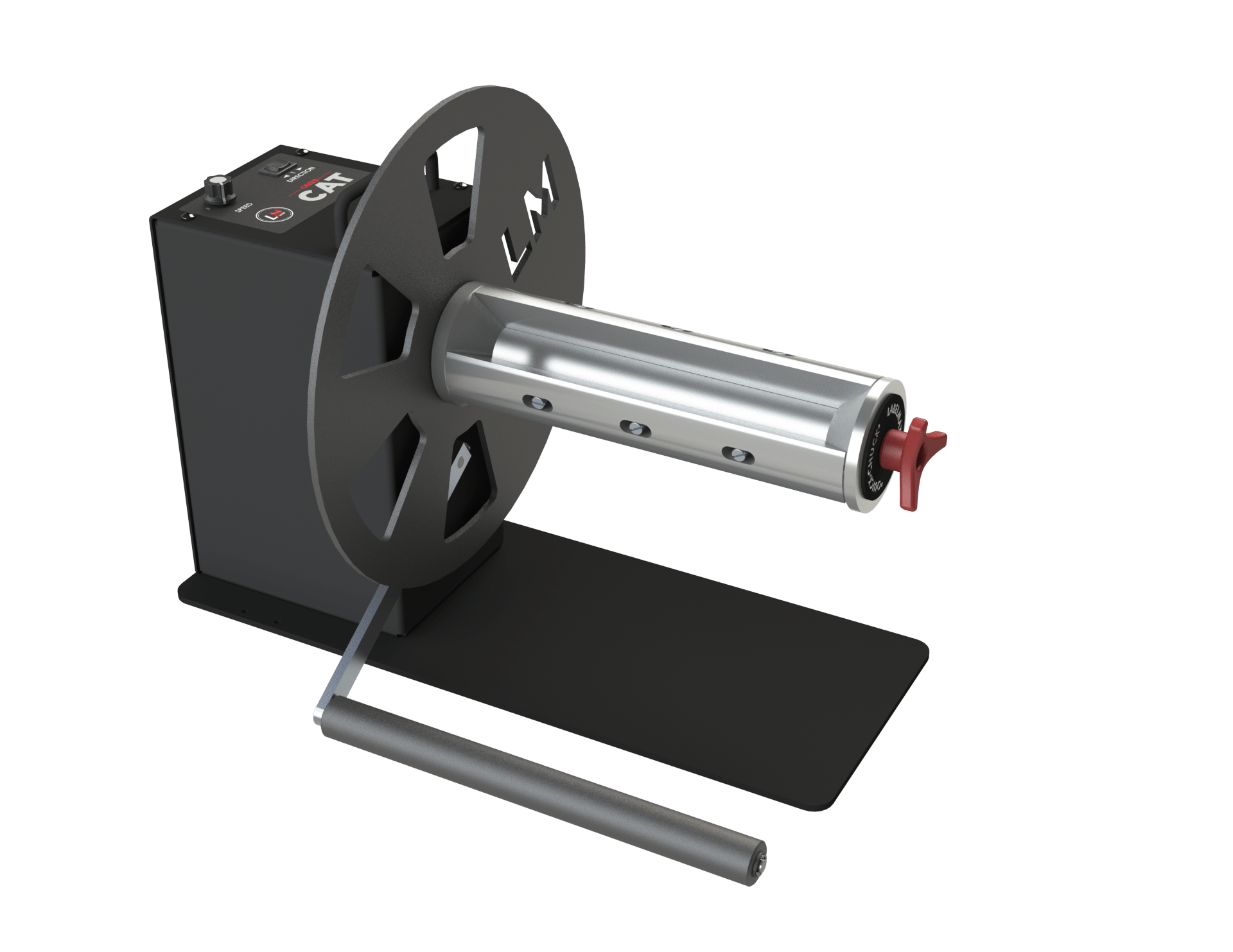

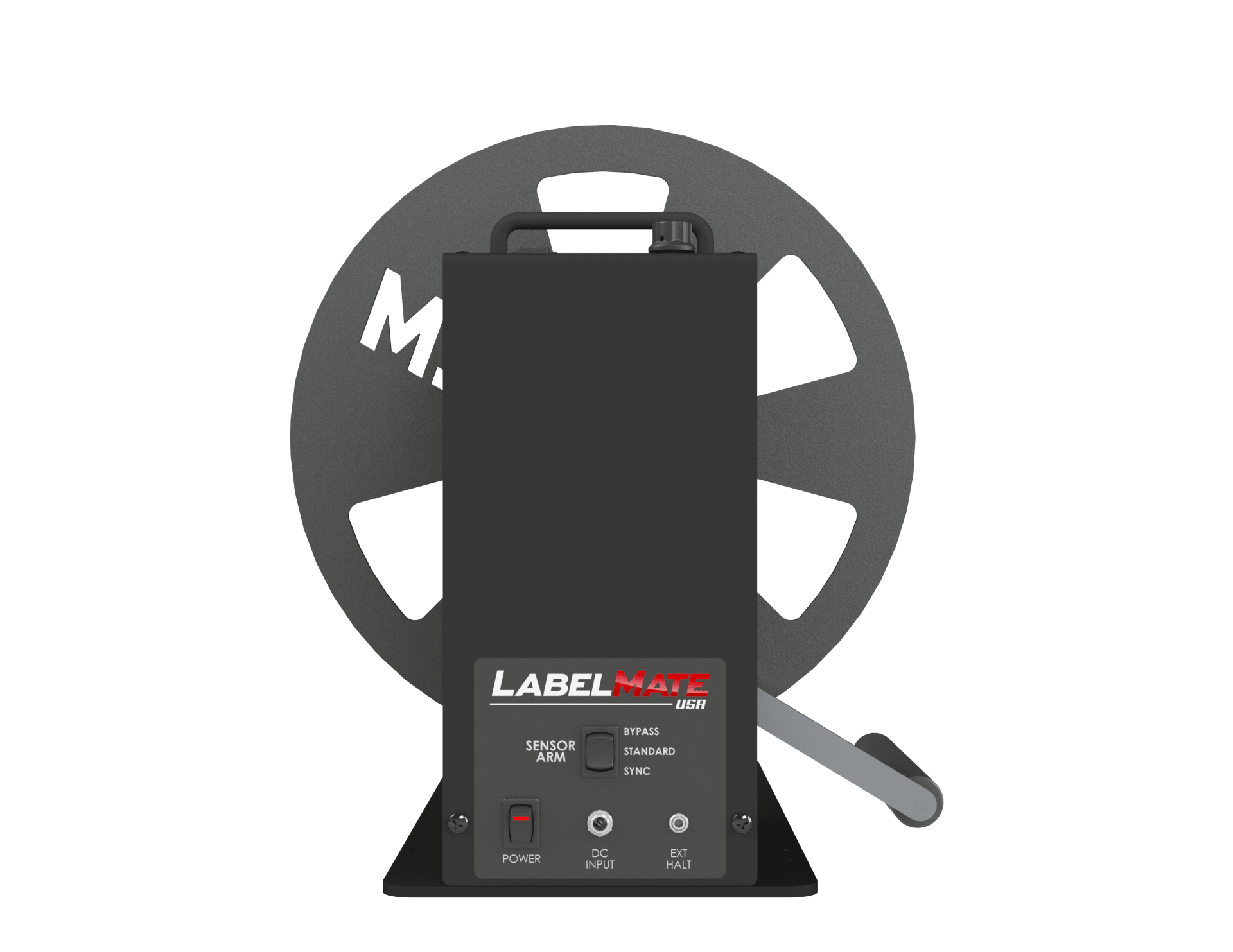

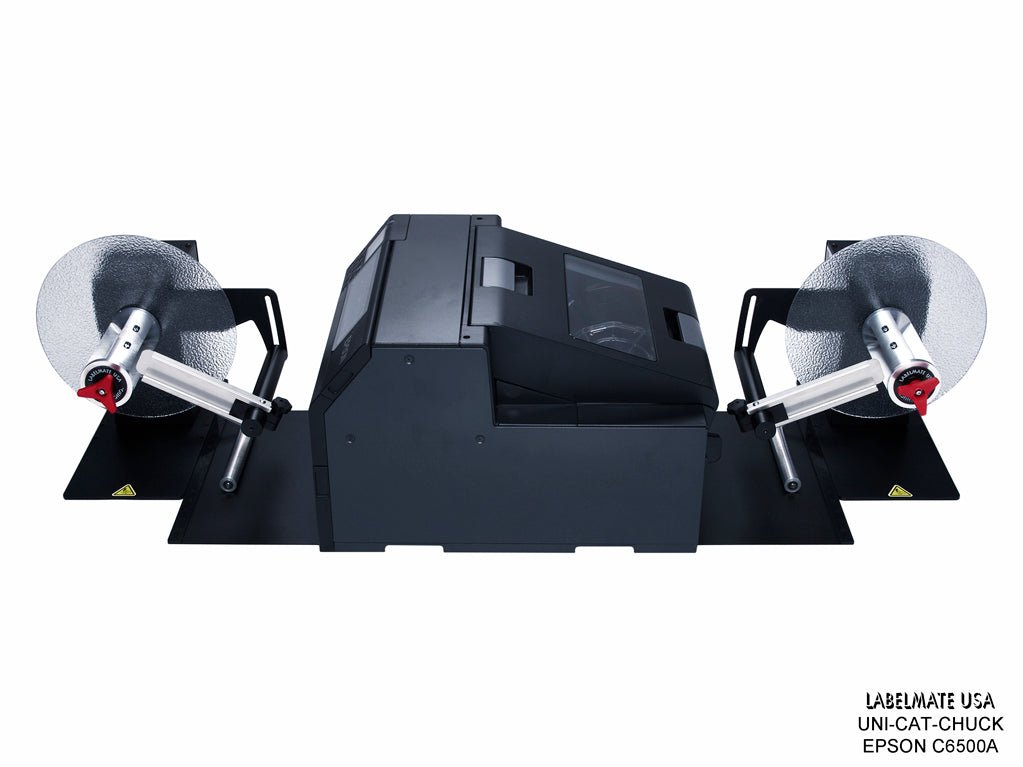

The OMNI-CAT-10 is the ultimate intelligent and universal Winder, serving as both a Rewinder and an Unwinder for media up to 10.5” wide. Designed with advanced features, this unit synchronizes seamlessly with your printer to ensure consistent, high-performance label handling.
Key Features:
- Max. Roll Diameter: 12” (305mm)
- Core Diameter: 3” (76mm)
- Core Holder: Mechanical Chuck
- Max. Media Width: 10.5” (266mm)
- Speed: Up to 300 inches/sec
- Bi-directional: “Smart” synchronization with printer
- Control: Automatic responsive speed and rewind tension control
- Durability: Heavy-gauge steel construction with anti-slip feet
- Convenience: Automatic stop at end of roll
Why Choose the OMNI-CAT-10?
This unit is self-teaching, adapting automatically to your printer's speed and direction without operator intervention. It’s ideal for tension-sensitive and back-feeding printers, making it versatile for diverse label handling needs. Its rugged construction and advanced technology ensure reliability and ease of use in demanding environments.
Videos:
Demonstrations and tutorials available upon request.
Shipping Information:
- Size: 20”x20”x11” (508x508x280mm)
- Weight: 34 lbs. (15.4 kg)
